ABAR246 Semi-Automated Blood Fractionation
The Apricot Blood Aliquot Robot 24-Tube, 6-Position ABAR246 is a low-cost solution for the automation of blood fractionation for blood banking or clinical testing. When blood sample buffy coat or plasma needs to be transferred from a centrifuged blood tube to a smaller storage tube, the ABAR offers a step beyond tedious manual pipetting.

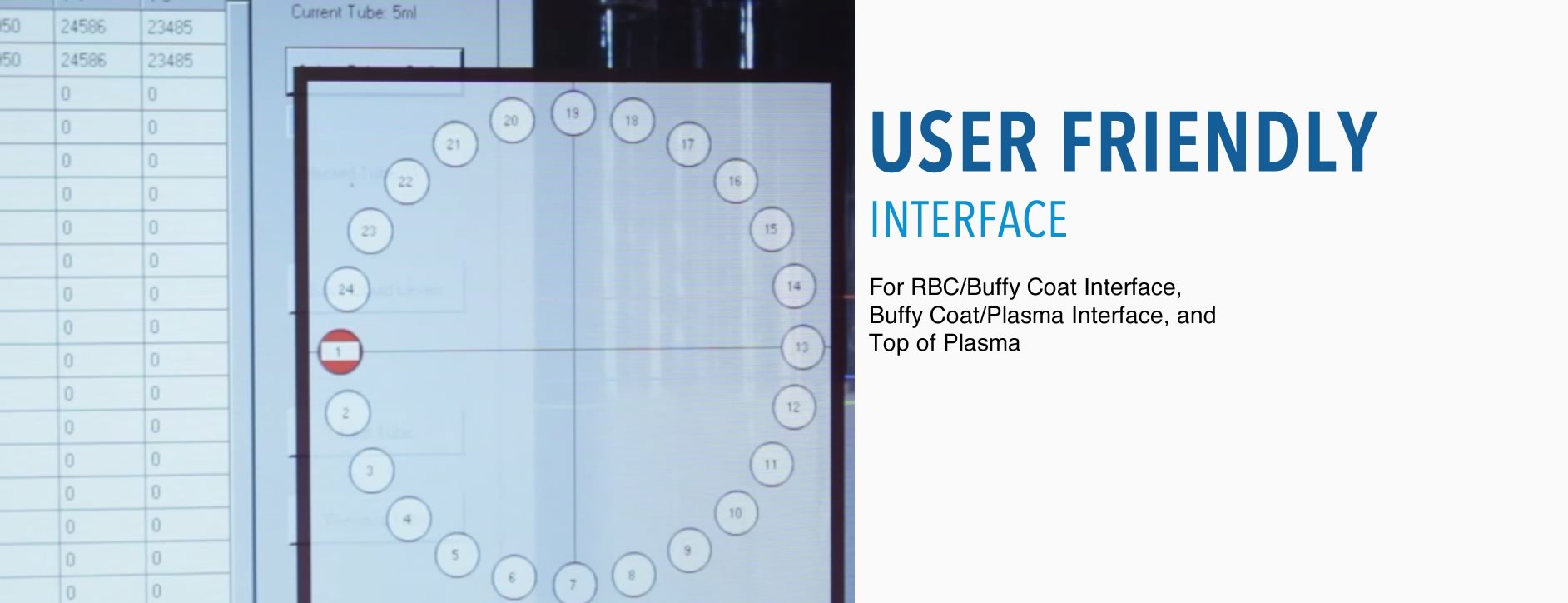

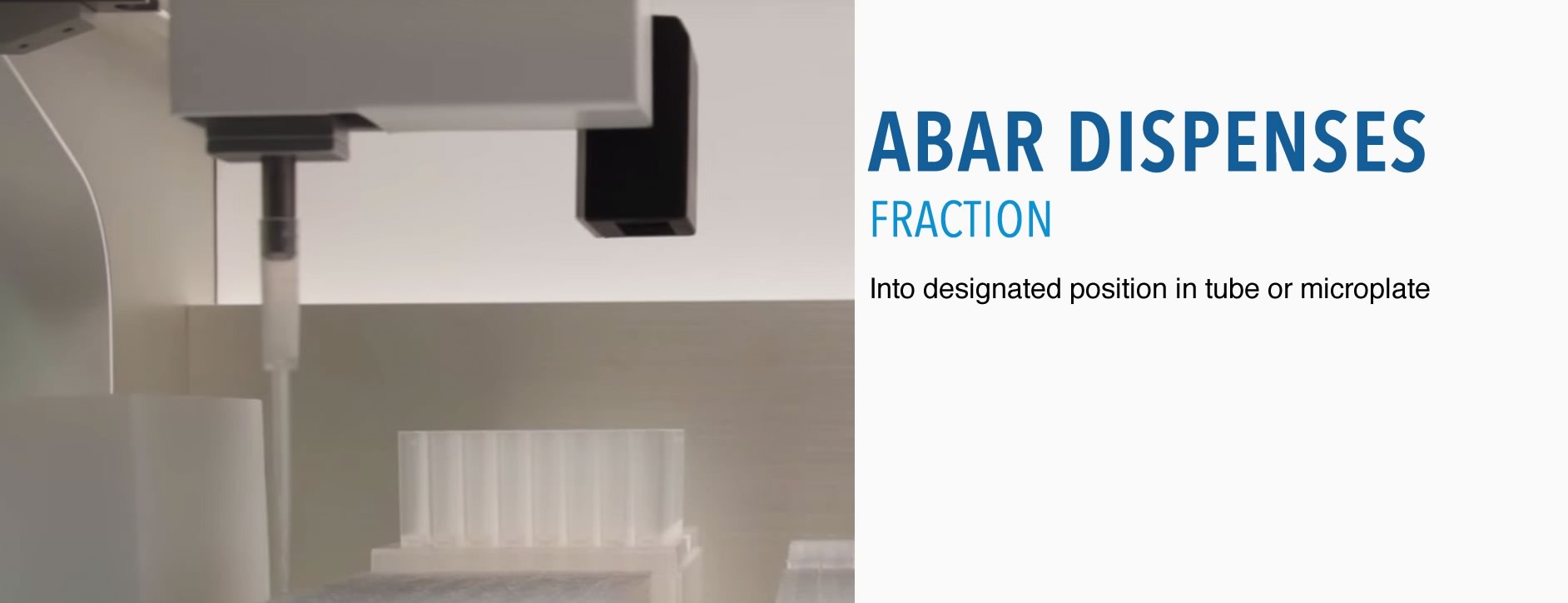

ABAR246 Semi-automated fraction detection combined with automated pipetting The ABAR includes a high-definition camera that captures and displays an image of each blood tube on a computer display. The user can quickly determine the location of the interface between each of the three blood fractions (red blood cells, buffy coat, & plasma). The user visually identifies the layer interfaces and the top of the liquid using the mouse and this information is stored. Once the layer interfaces have been identified the system takes over and will automatically transfer the desired layer from each blood tube to one or more micro storage tubes using a high-performance pipettor with disposable tips.
The system is configured with a 24-position blood tube carousel and a 6-position microplate footprint deck. The disposable pipette tips and up to 5 racks of storage tubes are placed on the deck.
Features & Benefits
No cross-contamination between samples; High-performance pipettor uses disposable tips
High definition camera for accurate fraction definition
Easy interface for defining blood fraction levels
Bar code scanner for automated sample identification / tracking
Process 24 blood tubes at a time
Transfer to many as 5 racks of 96 storage tubes
Automatic pipetting of liquid transfers
24 position sample tube carousel
6 plate nest on secure deck
Applications
Low-cost and convenient solution for transferring any liquid samples from tubes to microplate format
Processing large number of blood samples from clinical testing laboratories, special chemistry labs, blood banking labs
Definition of blood fraction levels in a straightforward yet precise manner
Manage sample variability with minimal user interaction
Specifications
Product Details |
|
|---|---|
| Dimensions | W: 63,5 D: 48,3, H: 48,3 [cm] |
| Power | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 10-38 °C |
Warranty |
|
|---|---|
| 12-month | Extensive manufacturer warranty. |
| Extended | Warranty and Annual Service plan are also available. Please CONTACT US for additional information. |
