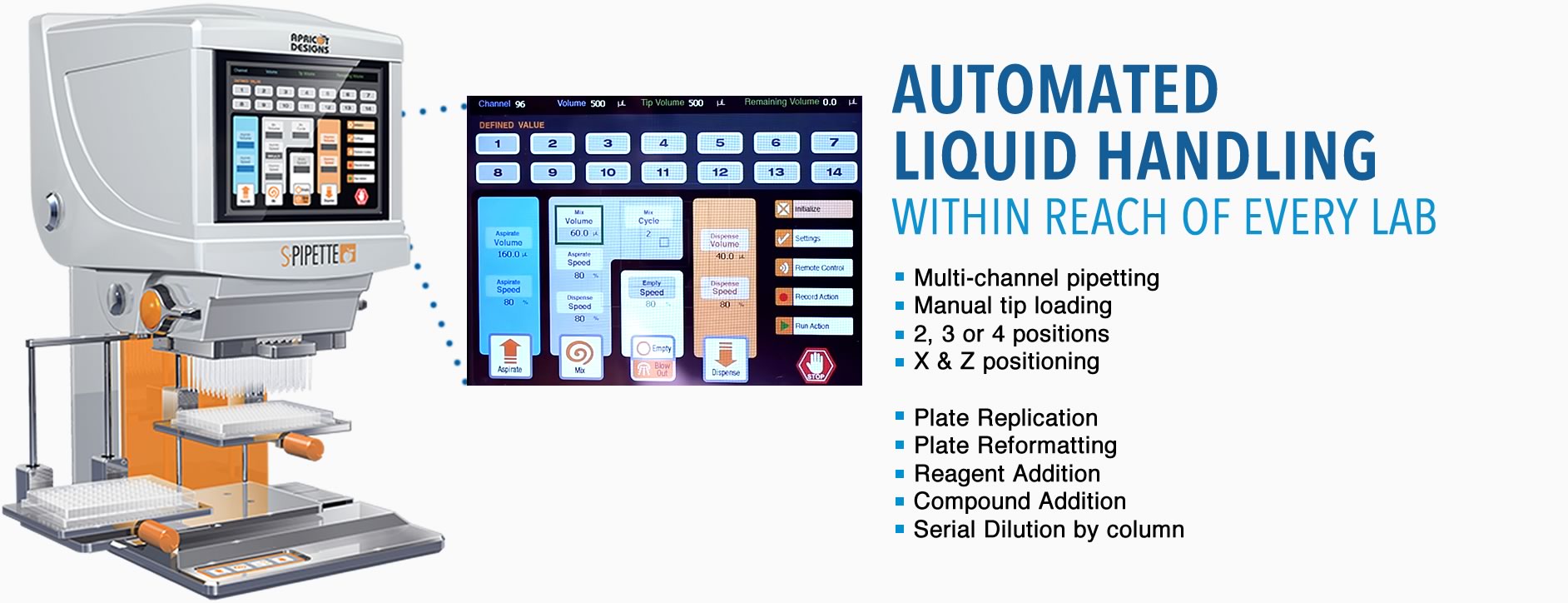

S-Pipette Automated Liquid Handling
Within Reach of Every Lab
HyperTeknologies is proud to be an exclusive distributor of the S-Pipette Automated Pipettor. S-Pipette 96/384 Multi-channel pipetting Manual tip loading 2,3 or 4 positions X & Z positioning S-Pipette Applications - Plate replication - Plate reformatting - Reagent addition - Compound addition - Serial dilution by column S-Pipette is an innovative new multi-channel liquid handling system that brings automated liquid handling within reach of any lab that routinely performs pipetting operations onto microplates.

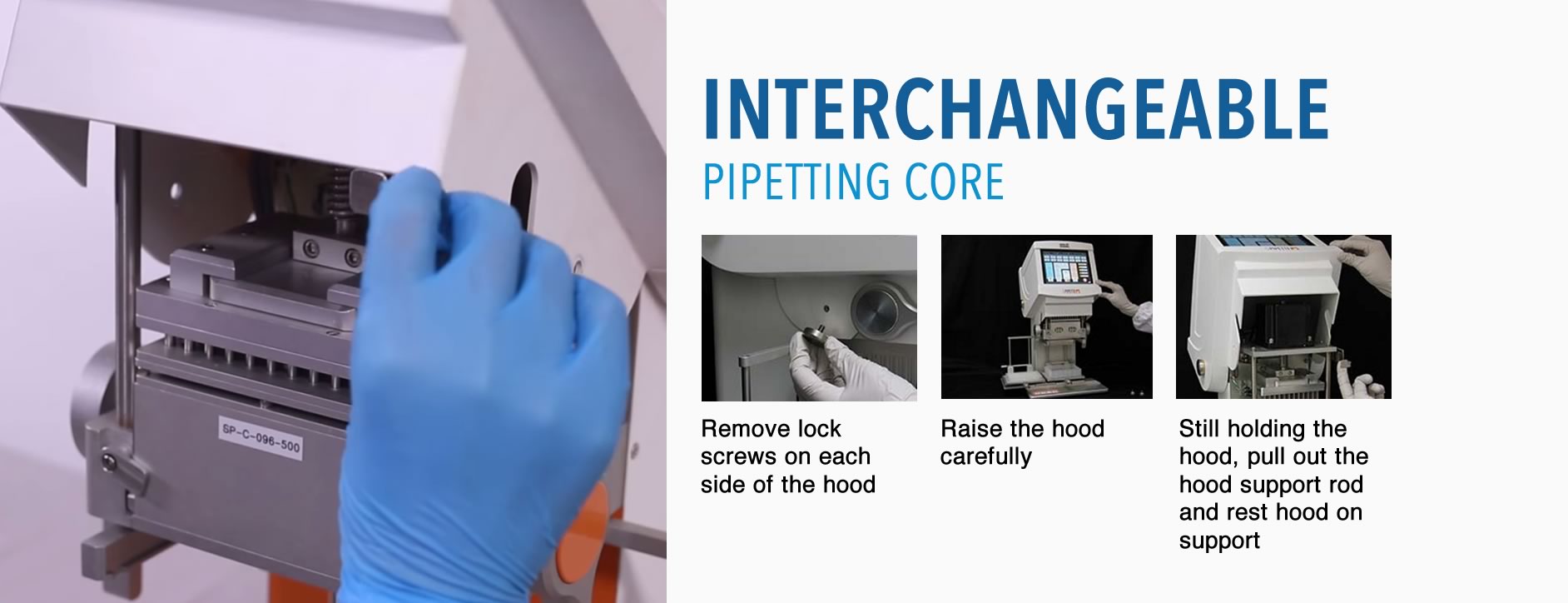

Multi-channel liquid handling system. Interchangeable pipetting core. Providing you with the flexibility to determine the configuration that best matches your application! EZ-Load = EZ-Change The “pipette head” is separate from the pipetting mechanism, allowing easy and economical reconfiguration in the lab.

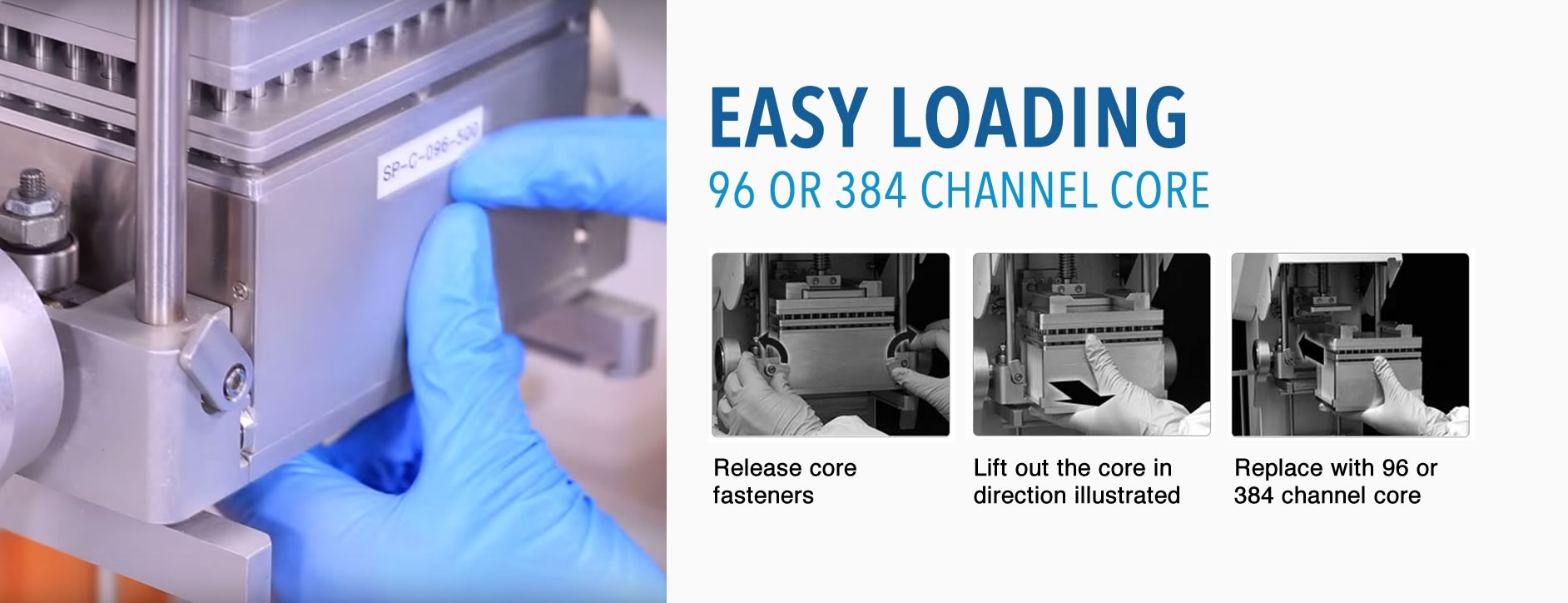

Changing heads only takes a few seconds – easily reconfigure as needed! For best pipetting results – consider pipette tip selection along with the “pipette head” that will be used.

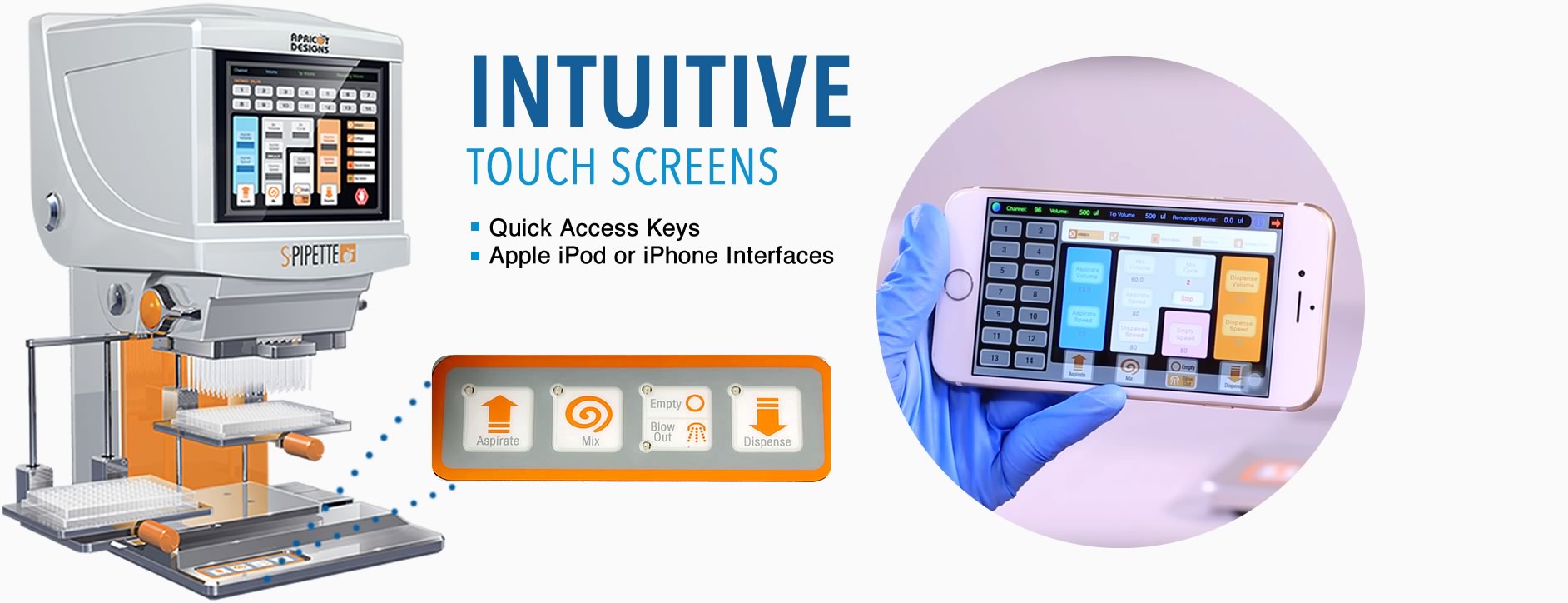

CONTACT US to learn more about the S-Pipette Automated Pipettor. Intuitive User Interfaces: No external computer needed - Control your pipettor with intuitive touch screen, quick keys or mobile APP
Features & Benefits
Multi-channel liquid handling system with an interchangeable pipetting core.
Pipette into all wells of 96-well plate with S-Pipette 96 core, or 384-well plate with S-Pipette 384 core.
More than 12x faster than an 8-channel handheld pipettor.
Pipette into all 96 wells without having to replace tips 12 times!
Adjustable split level plate elevators for individual sampling using multiple plates and a variety of SBS standard labware.

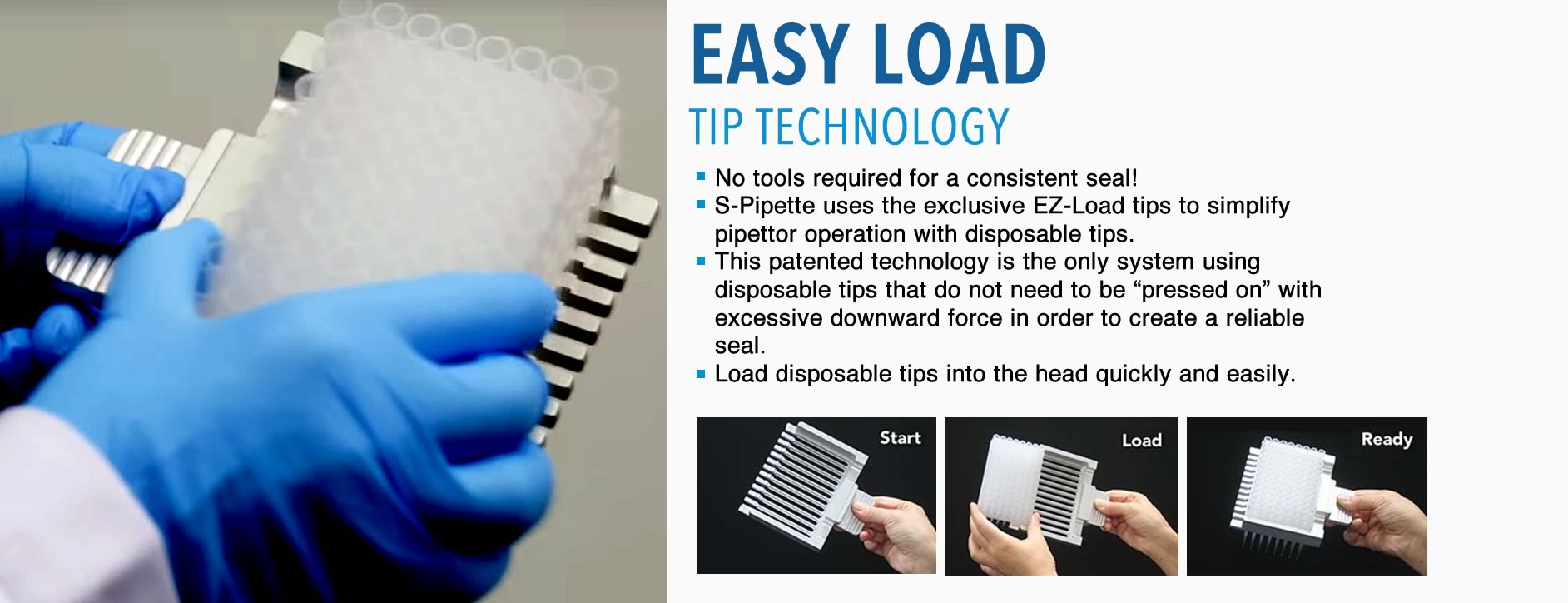

EZ-Load tip technology to load disposable tips quickly and easily, without tools!
Clamp pipetting head with simple levers.
Control via easy to use interfaces: touch screen, quick access keys, Apple iPod® or iPhone®.
Small footprint maximizes bench space and fits suitable hoods.
Manual tip loading
2, 3 or 4 positions
X & Z positioning
Applications
Plate replication
Plate reformatting
Reagent addition
Compound addition
Serial dilution (by column)
Specifications
Technical Details |
|
|---|---|
| Dispensing Precision | (96-1000) <3% CV at 10μL (96-500) <3% CV at 5μL (96/384 -125) <3% CV at 1μL |
| Dispensing Accuracy | (96-1000) +/– 2% error at 10μL (96-500) +/– 2% error at 5μL (96/384 -125) +/– 2% error at 1μL |
| Resolution | (96-500) 1μL (96/384 -125) 0.1μL |
| Pipette Volume | Max channel capacity (96) 125μL, 500μL, 1000μL (384) 125μL |
| Dispense Range | (96-1000) 1–1000μL (96-500) 1–500μL (96-125) 0.5–125μL (384-125) 0.5–125μL |
Product Details |
|
|---|---|
| Dimensions | 11.5”W x 13”D x 20.5”H 292mmW x 330mmD x 521mmH |
| Weight | ~ 44 lbs (20 kg) |
| Power | 100 to 240 VAC, 50/60 HZ |
| Operating Temperature | 50-100°F, 10-37.8°C |
Warranty |
|
|---|---|
| 12-month | Extensive manufacturer warranty. |
| Extended | Warranty and Annual Service plan are also available. Please CONTACT US for additional information. |

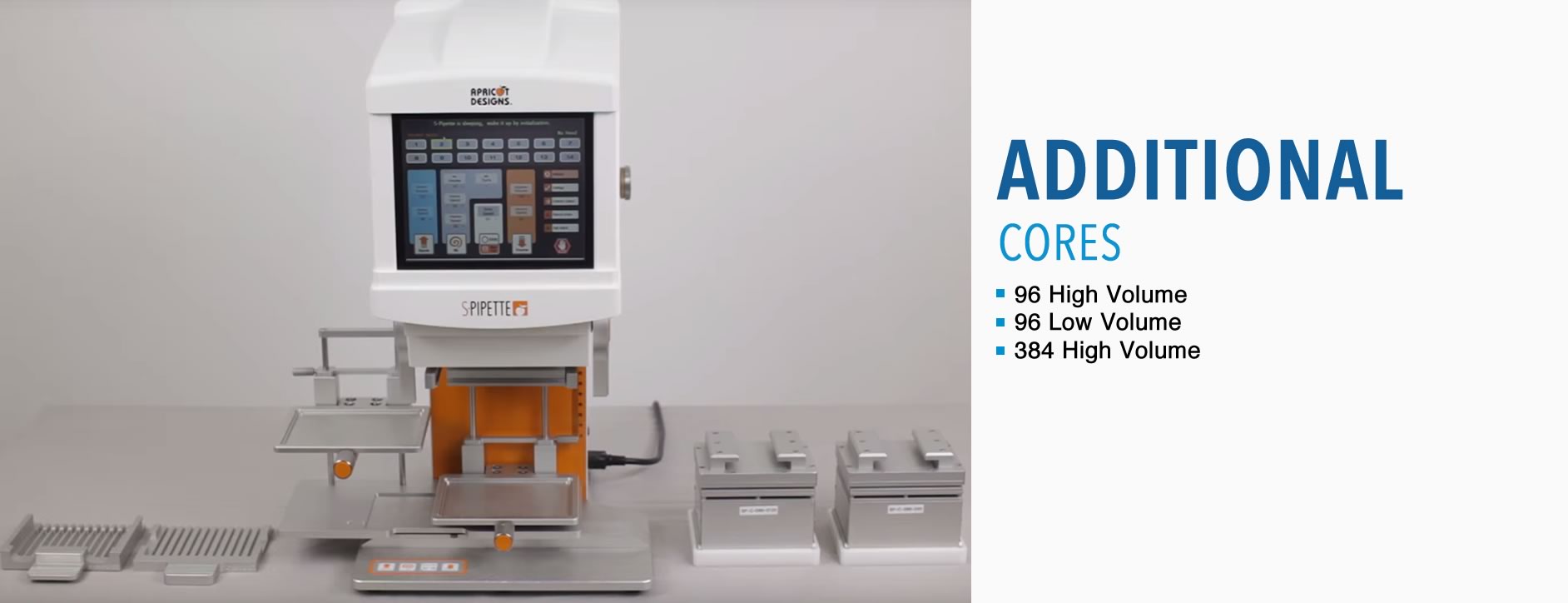

Options
96-channel volume options: 0.5 -125 µL, 1-550 µL, or 10 -1000 µL
384-channel volume: 0.5 -125 µL
2, 3, or 4 Shuttle/Plate Elevators available
Disposable tip heads with 8,16, 96 or 384 channels for Apricot high volume
250/500/1000 µL tips or Apricot EZ-Load 15/50/125 µL tips
