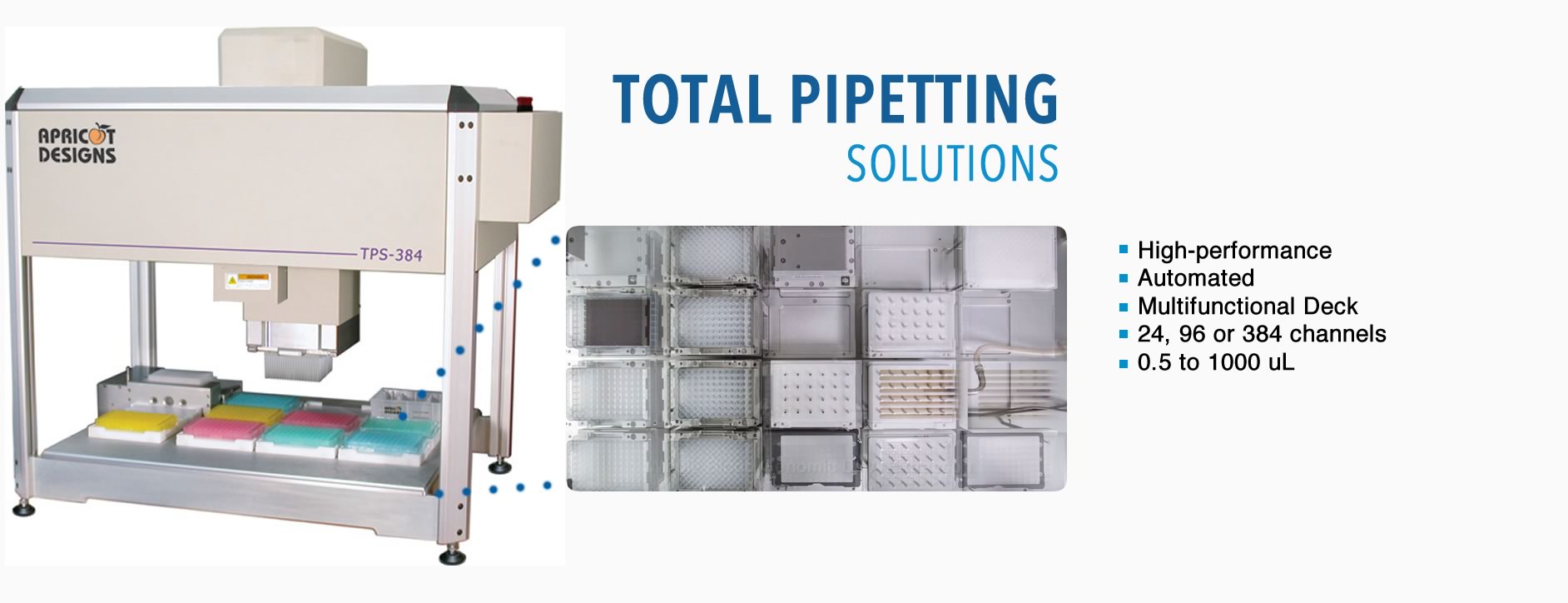

TPS EZ 96 Channel Liquid Handler
Apricot TPS EZ 96 channel liquid handler provides full walkaway productivity, flexibility for expanded operations and increased throughput including the capability to add extra devices such as shakers, heaters, coolers and magnetic bead separators. The perfect solution for plate replication, reformatting, reagent addition, and serial dilutions.

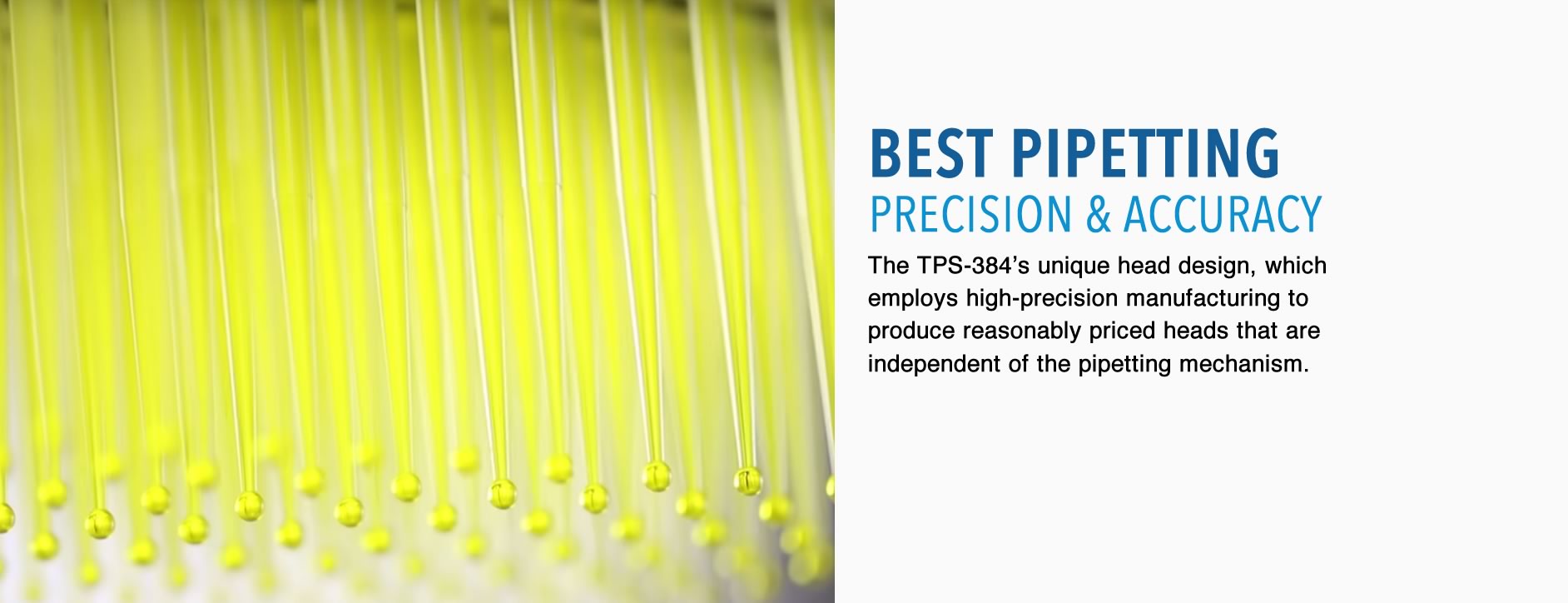

TPS EZ series uses Apricot's unique head design which employs high-precision manufacturing to produce reasonably-priced heads that are independent of the pipetting mechanism.

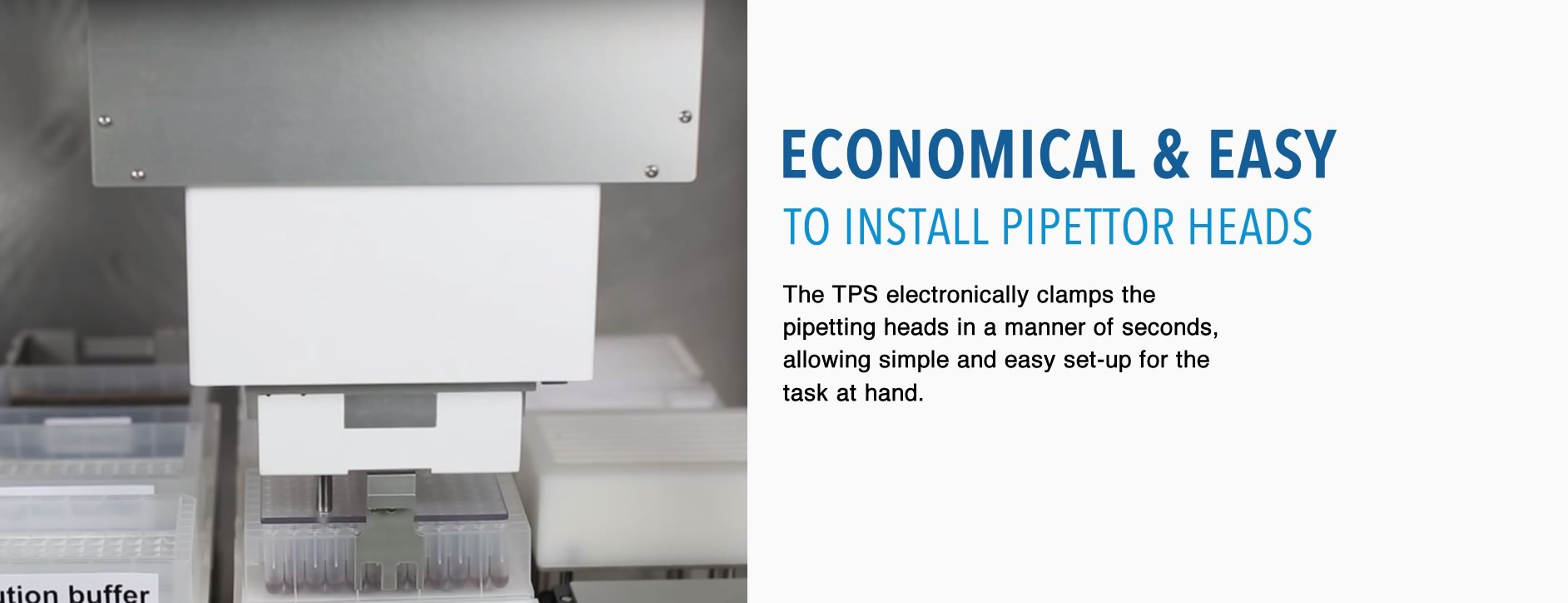

The Apricot TPS EZ electronically clamps the pipetting heads in a manner of seconds, allowing simple and easy set-up for the task at hand. Automatic indexing for performing serial dilutions by column or row. The Apricot TPS EZ series will also automatically load and unload Apricots disposable pipette tips. The low-force loading requirement for disposable tips makes the Apricot TPS EZ series easier to use and more reliable.
Features & Benefits
Fully automated 96 or 384 channel high precision/accurate pipetting.
Flexible design for for liquid transfers and pipetting operations for 96 well microplates and can also be used for serial dilutions by row or column.
Unique easy-change head system allowing the user to build a diverse head library with a reasonable investment. The heads are interchangeable with other Apricot pipettors.

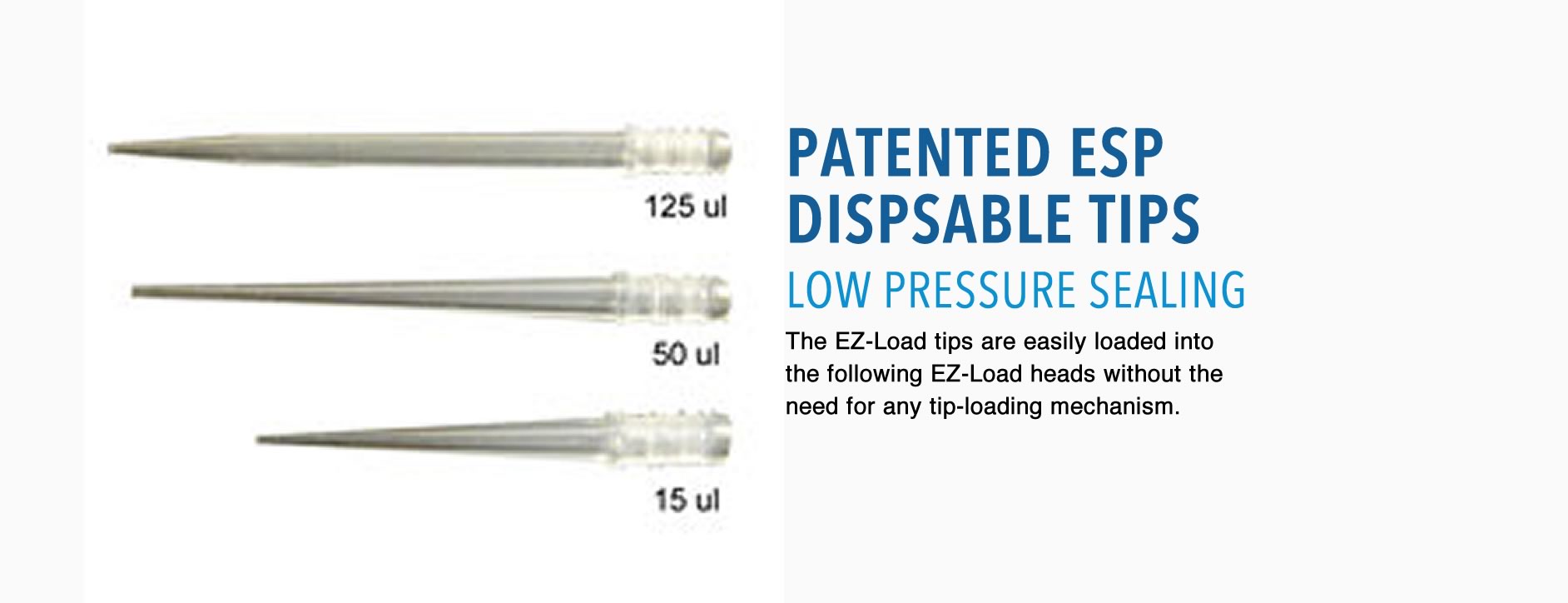

Uses unique disposable tips for the simplest and most reliable automated tip loading.
Select from 20 deck positions that can be used for plates, reservoirs, or tips for optimal walkway automation.

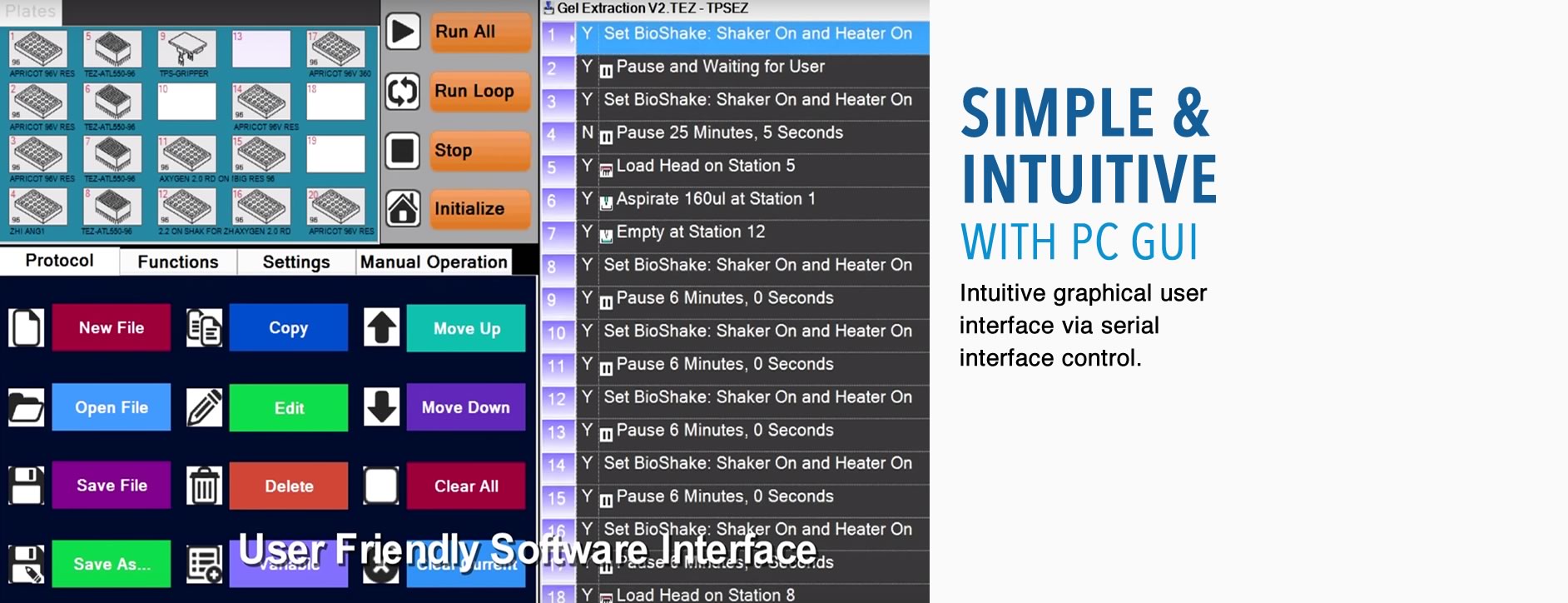

Intuitive graphical user interface via serial interface control.
Small footprint conserves bench space and fits easily into suitably-sized hoods.
Applications
Plate replication
Plate reformatting
Reagent addition
Compound addition
Serial dilution (by column)
Specifications
Technical Details |
|
|---|---|
| Dispensing Precision | <3% CV at 1 µL (TPS EZ 96L) <3% CV at 5 µL (TPS EZ 96H) |
| Dispensing Accuracy | +/- 2% at 1 µL (TPS EZ 96L) +/- 2% at 10 µL (TPS EZ 96H) |
| Resolution | 0.1 µL (TPS EZ 96L) 1 µL (TPS EZ 96H) Pipette Volume Max channel capacity (96) 500µL/1000µL) (96 - 125) 0.1µL)) |
Product Details |
|
|---|---|
| Dimensions | 41"W x 23"D x 33"H (104mmW x 675mmD x 838mmH) |
| Weight | (TPS EZ 96/TPS EZ) Approx. 360lbs (163 kg) |
| Power | 100 to 240 VAC, 50/60 HZ |
| Operating Temperature | 50 - 100 ºF |
Warranty |
|
|---|---|
| 12-month | Extensive manufacturer warranty. |
| Extended | Warranty and Annual Service plan are also available. Please CONTACT US for additional information. |
MODELS
Options |
|
|---|---|
| TPS EZ 96 | 96-channel pipettor with configurable deck size for plate replication, reformatting, reagent addition, and serial dilutions. High-volume version with 96 550 µL pipetting channels for up to 550 µL pipetting. |
| TPS EZ 96H | 96-channel pipettor with configurable deck size for plate replication, reformatting, reagent addition, and serial dilutions. High-volume version with 96 550 µL pipetting channels with extended height for vacuum manifold or other tall accessories. |
Accessories
Pipettor heads are available for disposable tips from HyperTeknologies as well as fixed tip heads with stainless steel needles.
Custom heads for unique or new applications are also available. Please CONTACT US for additional information.
Accessory Options |
|
|---|---|
| Fixed Tip Heads | With 8, 12 and 96 channels. |
| Disposable Tip Heads | With 8, 12 or 96 channels for Apricot 550 and ESP tips or Biomek® FX tips. |
| Tip washing system | With recirculating pump. |
| Filtration Station | 2-position with vaccum manifold. |
| Bar Code Scanner | Optional |
| Plate Shaker | Motorized |
| Reservoir | Refillable |
| Built-on Ducted | Optional |
| Recirculating Hood Enclosure | Optional |
